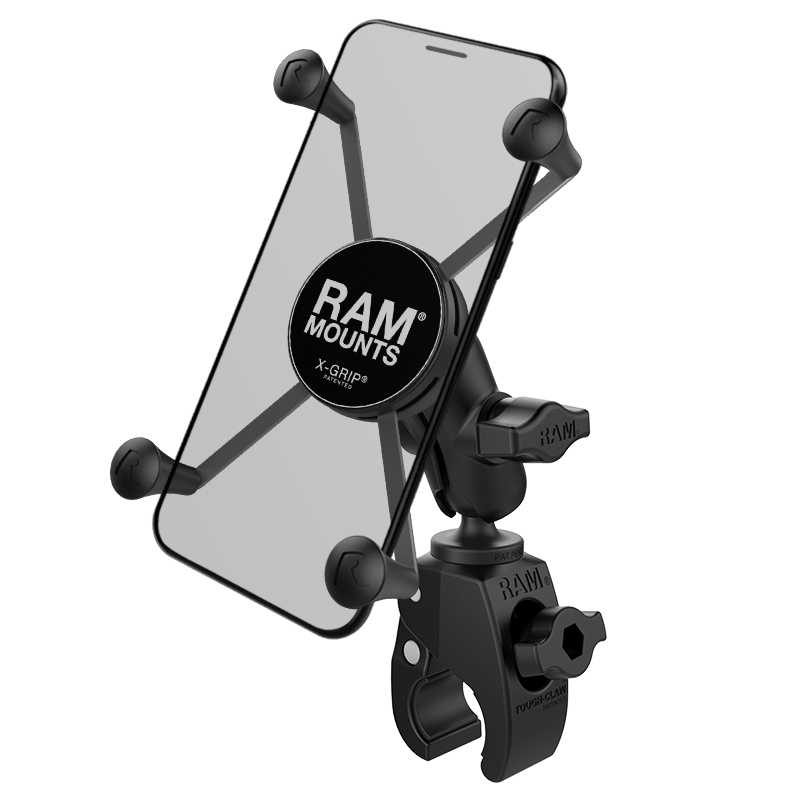

RAM X-Grip Large Phone Mount with RAM Tough-Claw Small Clamp Base
Item number: RAM-B-400-A-HOL-UN10BU
RAM-B-400-A-HOL-UN10BU – RAM X-Grip Large Phone Mount with RAM Tough-Claw Small Clamp Base
FEATURES
- Small version of the RAM® Tough-Claw™ base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from .625″ (15.87 mm) to 1.5″ (38.1 mm) in outer diameter; rubber pads provide stable gripping and protection of mounting surface
- Spring-loaded ‘X’ design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
- Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
OVERVIEW
The RAM-B-400-A-HOL-UN7BU consists of the Tough-Claw™ rail clamp base, SHORT length double socket arm and universal spring loaded X-Grip® cradle for phones. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your tablet. Included are easy access grip knobs for quick insertion and release of your handheld device. The Tough-Claw™ rail clamp base is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw™ can be clamped on rails from 0.625″ – 1.5″ (15.87 mm – 38.1 mm) outer diameter. Perfectly suited for mounting on the yoke of an aircraft, handlebars and seat posts of bicycles, kayak rails, roll bars and much more, the RAM® Tough-Claw™ will soon become another essential RAM® component in your collection of mounting options. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
- HARDWARE INCLUDED

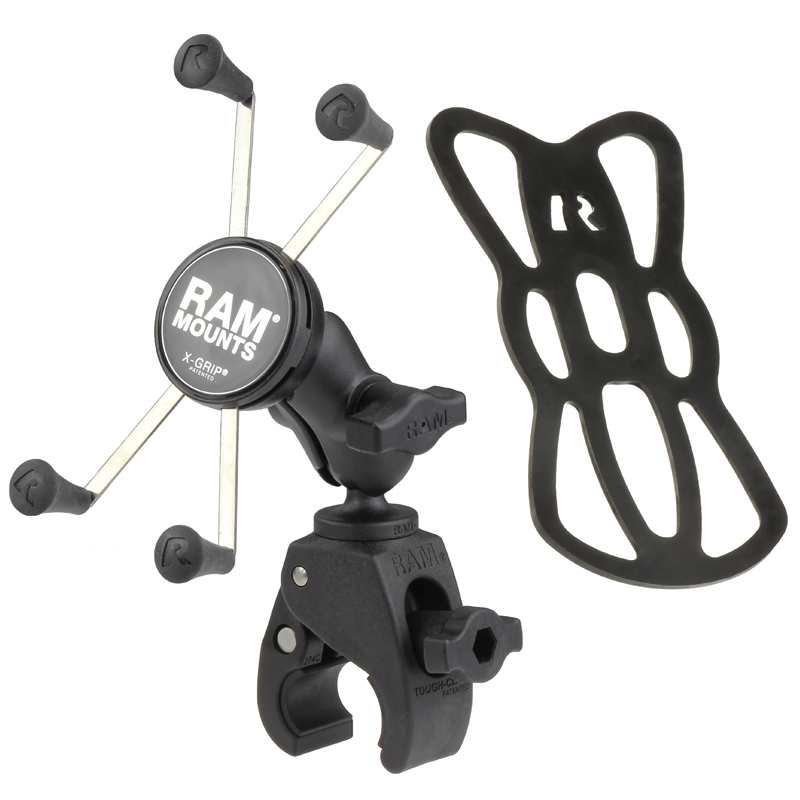

(1) Optional Tether
(1) Glue Tube for Rubber Caps
- HOLDER DIMENSIONS
Width Range: 1.75″ – 4.5″ (44.45 mm – 114.3 mm)
Depth Range: .875″ (22.22 mm) max
- CLAMP RANGE
.625″ – 1.5″ (15.87 mm – 38.1 mm) diameter
0″ – 1.14″ (0 mm – 28.95 mm) flat surfaces
- SOCKET-TO-SOCKET LENGTH
1.75″ (44.45 mm)
- BALL/SOCKET SIZE
B Size (1″) (25.4 mm)
- WEIGHT CAPACITY
Standard Use: 2 lbs (907.18 g)
Heavy-Duty Use: 1 lb (453.59 g)
- MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel
- PACKAGING TYPE
Poly Bag
- WEIGHT
0.75 lbs. (340.19 g)
- ADDITIONAL INFORMATION
COMPATIBLE DEVICES
- Apple
iPhone 6s Plus
iPhone 7 Plus
iPhone 8 Plus
iPhone Xs Max
iPhone 11 Pro Max
iPhone 12 Pro Max
- Blackberry
Evolve X
- Blackview
BV9900
BV9900 Pro
- Cat
S42
S62
S62 Pro
- Garmin
Drive 50
Drive 51 LM
Drive 52
Drive 61 LM
DriveSmart 51 LMT-S
DriveSmart 61 LMT-S
DriveTrack 71
Nuvi 2788LM
RV 660LMT
RV 770 LMT-S
- Google
Pixel 2 XL
Pixel 3 XL
Pixel 3a XL
- HTC
Bolt
U Ultra
- Huawei
Mate 20 X
- LG
Fiesta 2 LTE
Fiesta LTE
G8S ThinQ
Harmony
Stylo 2 V
Stylo 3
Stylo 3 Plus Titan
Stylo 4
V20
V50 ThinQ
X charge
X venture
- Magellan
TR5
TR7
- Motorola
moto e4 plus
moto g4
moto z2
moto z2 play
moto z3
- Rand
McNally Road Explorer 5
McNally TND 540
- Razer
Phone 2
- Samsung
Galaxy A7
Galaxy A7 (2017)
Galaxy A7 (2018)
Galaxy A8
Galaxy A8 (2016)
Galaxy A9 (2016)
Galaxy A9 Pro (2016)
Galaxy A9 (2018)
Galaxy A70
Galaxy A80
Galaxy A90 5G
Galaxy C7
Galaxy C7 Pro
Galaxy C9 Pro
Galaxy E7
Galaxy Grand Neo Plus
Galaxy J7
Galaxy J7 Max
Galaxy J7 V
Galaxy Note 5
Galaxy Note 10 Plus
Galaxy Note20 Ultra
Galaxy On7
Galaxy S10 5G
Galaxy S8
Galaxy S8 Active
Galaxy S21 5G
Galaxy S21+ 5G
Galaxy S21 Ultra 5G
- Sonim
RS60
- Sony
Xperia C4
Xperia L2
Xperia XA Ultra
Xperia XA1 Ultra
Xperia XA2 Ultra
Xperia XZ Premium
