RAM X-Grip Phone Mount with RAM Twist-Lock Suction Cup
Item number: RAM-B-166-UN7U
RAM-B-166-UN7U – RAM X-Grip Phone Mount with RAM Twist-Lock Suction Cup
FEATURES
- Spring-loaded ‘X’ design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
- Includes RAM® Twist-Lock™ suction cup base ideal for vehicle windshields and medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
OVERVIEW

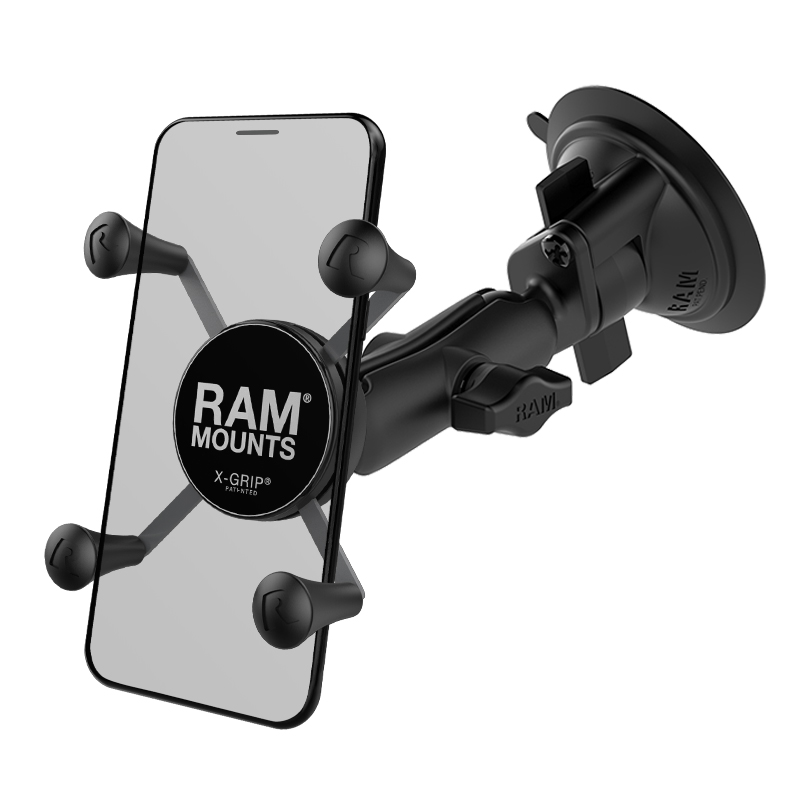

Ideal for vehicle windshields, the RAM-B-166-UN7U consists of a 3.3″ (83.82 mm) diameter RAM® Twist-Lock™ suction cup base, medium length double socket arm, and the popular spring-loaded RAM® X-Grip® phone holder. The RAM® X-Grip® features an ‘X’ design that expands and contracts to provide a perfect fit for your device – even if it’s in a case. Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite, this version of the RAM® X-Grip® fits phones ranging from 1.87″ to 3.25″ (47.49 mm – 82.55 mm) in width and keeps your device completely functional and accessible. RAM® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your phone by providing shock and vibration damping. For outdoor applications, the RAM® X-Grip® includes a device tether that is recommended for added security and peace of mind.
- HARDWARE INCLUDED
Assembly Hardware

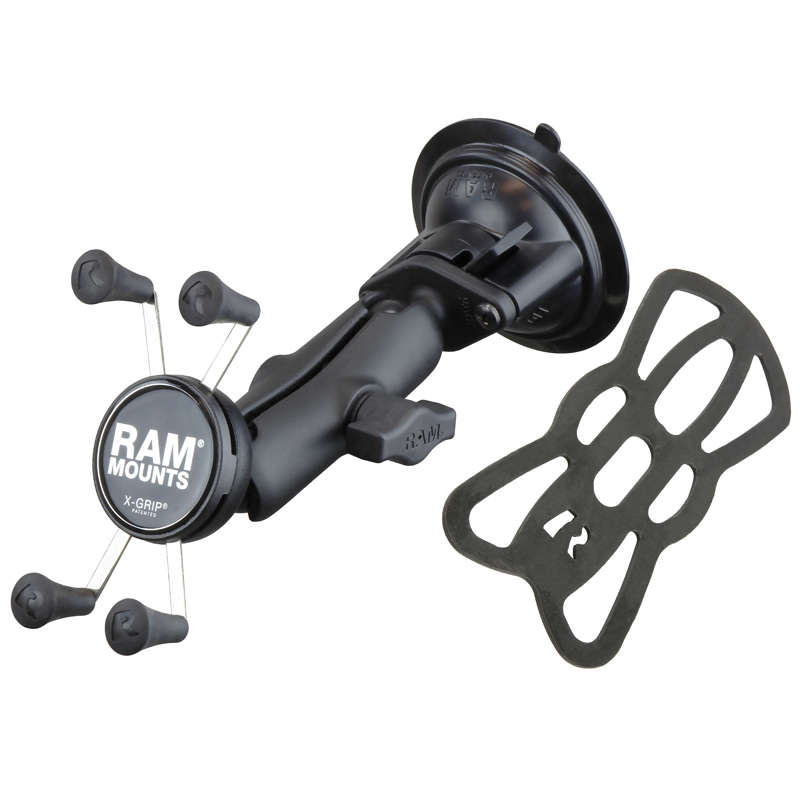

(1) Optional Tether
(1) Glue Tube for Rubber Caps
- HOLDER DIMENSIONS
Width Range: 1.875″ – 3.25″ (47.62 mm – 82.55 mm)
Depth Range: .875″ (22.22 mm) max
- SUCTION SIZE
3.3″ (83.82 mm) Diameter
- SOCKET-TO-SOCKET LENGTH
3″ (76.2 mm)
- BALL/SOCKET SIZE
B Size (1″) (25.4 mm)
- WEIGHT CAPACITY
Standard Use: 2 lbs (907.18 g)
Heavy-Duty Use: 1 lb (453.59 g)
- MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel
- PACKAGING TYPE
Poly Bag
- WEIGHT
0.8 lbs. (362.87 g)
- ADDITIONAL INFORMATION
- Apple
iPhone 6s
iPhone 7
iPhone 8
iPhone SE
iPhone X
iPhone Xs
iPhone Xr
- Blackberry
DTEK 50
DTEK 60
KEYone
- Google
Pixel
Pixel XL
Pixel 2
Pixel 3
- HTC
U11
U11 life
- LG
Aristo
Aristo 2
Exalt LTEram-
G5
G5 Silver
G6
G6+
Grace LTE
K20
K20 Plus
K20 V
K3
K3 2017
K8 2017
Phoenix 3
Q6
Rebel 2 LTE
Rebel 3 LTE
Risio 2
Tribute Dynasty
Tribute HD
V30
Wine LTE
Zone 4
- Motorola
moto e4
moto g5s plus
moto X4
- Nokia
1
2
3
5
6
8
216
230
150 Dual SIM
3310 Dual SIM
7 plus
8 Sirocco
8110 4G
- Samsung
Galaxy A3
Galaxy A3 (2016)
Galaxy A3 (2017)
Galaxy A5
Galaxy A5 (2016)
Galaxy A5 (2017)
Galaxy A7 (2016)
Galaxy A8+
Galaxy AMP 2
Galaxy AMP Prime
Galaxy AMP Prime 2
Galaxy C5
Galaxy E5
Galaxy Express 3
Galaxy Express Prime 2
Galaxy Grand Max
Galaxy J1
Galaxy J1 (2016)
Galaxy J2
Galaxy J2 (2016)
Galaxy J2 (2017)
Galaxy J3 (2016)
Galaxy J3 (2017) International
Galaxy J3 Emerge
Galaxy J3 Prime
Galaxy J3 V
Galaxy J5
Galaxy J5 (2016)
Galaxy J5 (2017)
Galaxy J7 (2016)
Galaxy J7 (2017)
Galaxy J7 Perx
Galaxy J7 Prime
Galaxy J7 Prime 2
Galaxy Luna
Galaxy Note 8
Galaxy Note Fan Edition
Galaxy On NXT
Galaxy On5
Galaxy On7 Prime
Galaxy On8
Galaxy S5
Galaxy S5 Neo
Galaxy S6
Galaxy S6 Active
Galaxy S6 Edge
Galaxy S6 Edge+
Galaxy S7
Galaxy S7 Active
Galaxy S7 Edge
Galaxy S8
Galaxy S8 Active
Galaxy S8+
Galaxy S9
Galaxy S9+
Galaxy V Plus
Galaxy Xcover 3
Galaxy Xcover 4
W2017
Z1
Z2
Z3
Z4
- Sony
Xperia L1
Xperia X
Xperia X Compact
Xperia X Performance
Xperia XA
Xperia XA1
Xperia XA1 Plus
Xperia XA2
Xperia XZ
Xperia XZ1
Xperia XZ1 Compact
Xperia XZ2
Xperia XZ2 Compact
Xperia XZs
Xperia Z3
Xperia Z3+
Xperia Z5
Xperia Z5 Compact
