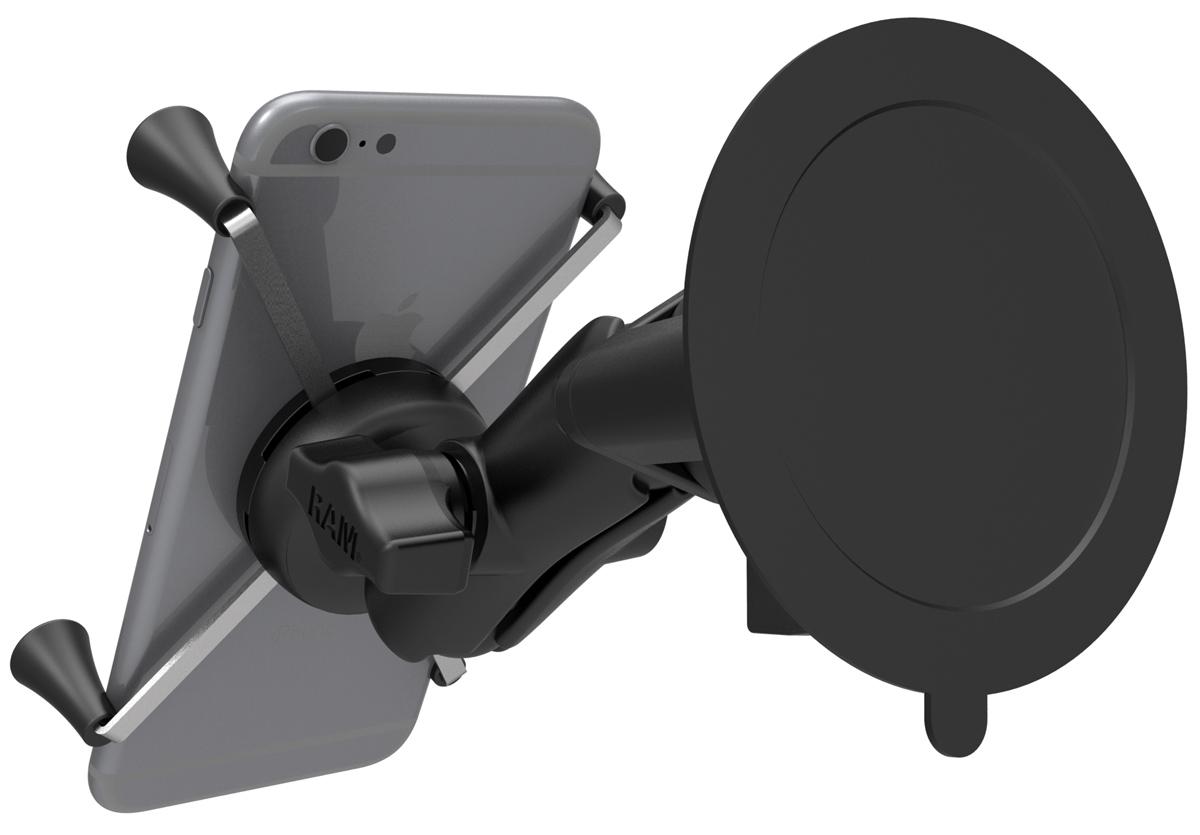

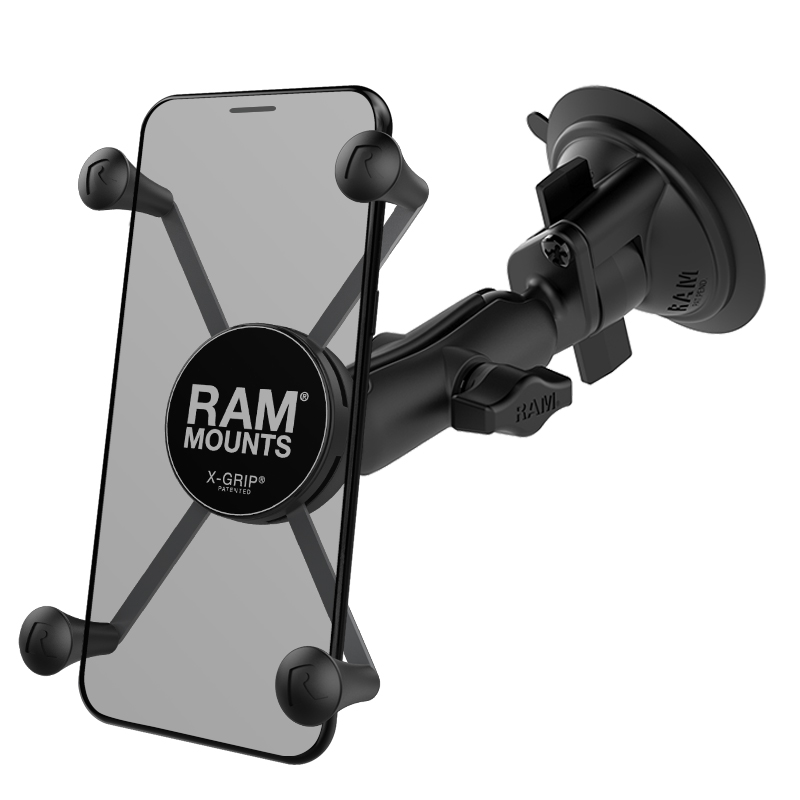

RAM X-Grip Large Phone Mount with RAM Twist-Lock Suction Cup Base
Item number: RAM-B-166-UN10U
FEATURES
- Spring-loaded ‘X’ design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
- Includes RAM® Twist-Lock™ suction cup base ideal for vehicle windshields and medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
OVERVIEW
Ideal for vehicle windshields, the RAM-B-166-UN10U consists of a 3.3″ (83.82 mm) diameter RAM® Twist-Lock™ suction cup base, medium length double socket arm, and the popular spring-loaded RAM® X-Grip® large phone holder. The RAM® X-Grip® features an ‘X’ design that expands and contracts to provide a perfect fit for your device – even if it’s in a case. Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite, this large version of the RAM® X-Grip® fits phones ranging from 1.75″ (44.45 mm) to 4.5″ (114.3 mm) in width and keeps your device completely functional and accessible. RAM® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your phone by providing shock and vibration damping. For outdoor applications, the RAM® X-Grip® includes a device tether that is recommended for added security and peace of mind.
RAM X-Grip Large Phone Mount with RAM Twist-Lock Suction Cup Base
- HARDWARE INCLUDED
Assembly Hardware

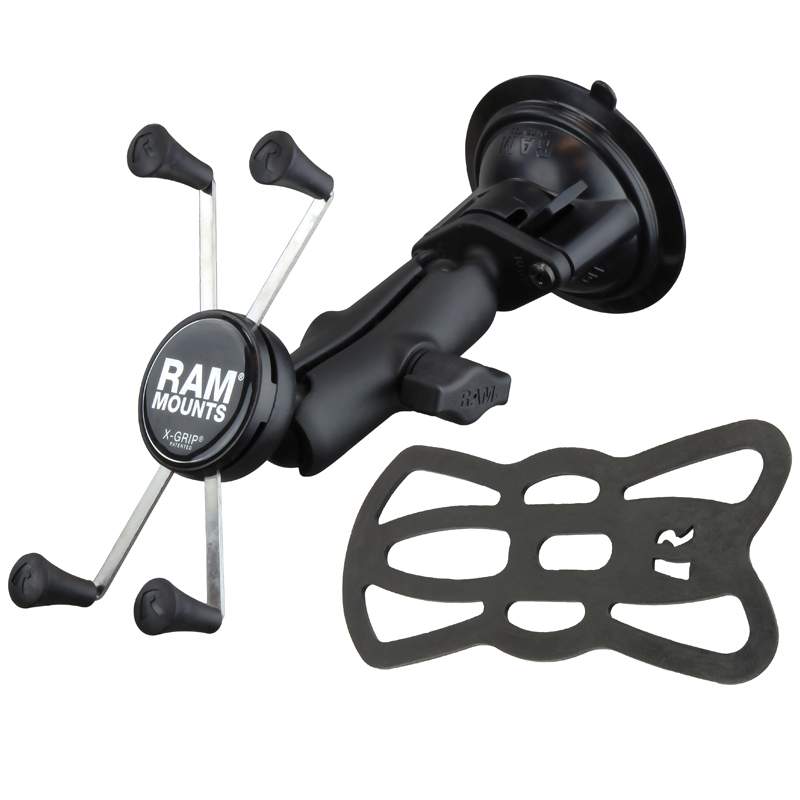

(1) Optional Tether
(1) Glue Tube for Rubber Caps
- HOLDER DIMENSIONS
Width Range: 1.75″ – 4.5″ (44.45 mm – 114.3 mm)
Depth Range: .875″ (22.22 mm) max
- SUCTION SIZE
3.3″ (83.82 mm) Diameter
- SOCKET-TO-SOCKET LENGTH
3″ (76.2 mm)
- BALL/SOCKET SIZE
B Size (1″) (25.4 mm)
- WEIGHT CAPACITY
Standard Use: 2 lbs (907.18 g)
Heavy-Duty Use: 1 lb (453.59 g)
- MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel
- PACKAGING TYPE
Poly Bag
- WEIGHT
0.8 lbs. (362.87 g)
- ADDITIONAL INFORMATION
COMPATIBLE DEVICES
Apple
- iPhone 6s Plus
- iPhone 7 Plus
- iPhone 8 Plus
- iPhone Xs Max
- iPhone 11 Pro Max
- iPhone 12 Pro Max
Blackberry
- Evolve X
Blackview
- BV9900
- BV9900 Pro
Cat
- S42
- S62
- S62 Pro
Garmin
- Drive 50
- Drive 51 LM
- Drive 52
- Drive 61 LM
- DriveSmart 51 LMT-S
- DriveSmart 61 LMT-S
- DriveTrack 71
- Nuvi 2788LM
- RV 660LMT
- RV 770 LMT-S
- Pixel 2 XL
- Pixel 3 XL
- Pixel 3a XL
HTC
- Bolt
- U Ultra
Huawei
- Mate 20 X
LG
- Fiesta 2 LTE
- Fiesta LTE
- G8S ThinQ
- Harmony
- Stylo 2 V
- Stylo 3
- Stylo 3 Plus Titan
- Stylo 4
- V20
- V50 ThinQ
- X charge
- X venture
Magellan
- TR5
- TR7
Motorola
- moto e4 plus
- moto g4
- moto z2
- moto z2 play
- moto z3
Rand
- McNally Road Explorer 5
- McNally TND 540
Razer
- Phone 2
Samsung
- Galaxy A7
- Galaxy A7 (2017)
- Galaxy A7 (2018)
- Galaxy A8
- Galaxy A8 (2016)
- Galaxy A9 (2016)
- Galaxy A9 Pro (2016)
- Galaxy A9 (2018)
- Galaxy A70
- Galaxy A80
- Galaxy A90 5G
- Galaxy C7
- Galaxy C7 Pro
- Galaxy C9 Pro
- Galaxy E7
- Galaxy Grand Neo Plus
- Galaxy J7
- Galaxy J7 Max
- Galaxy J7 V
- Galaxy Note 5
- Galaxy Note 10 Plus
- Galaxy Note20 Ultra
- Galaxy On7
- Galaxy S10 5G
- Galaxy S8
- Galaxy S8 Active
- Galaxy S21 5G
- Galaxy S21+ 5G
- Galaxy S21 Ultra 5G
Sonim
- RS60
Sony
- Xperia C4
- Xperia L2
- Xperia XA Ultra
- Xperia XA1 Ultra
- Xperia XA2 Ultra
- Xperia XZ Premium
