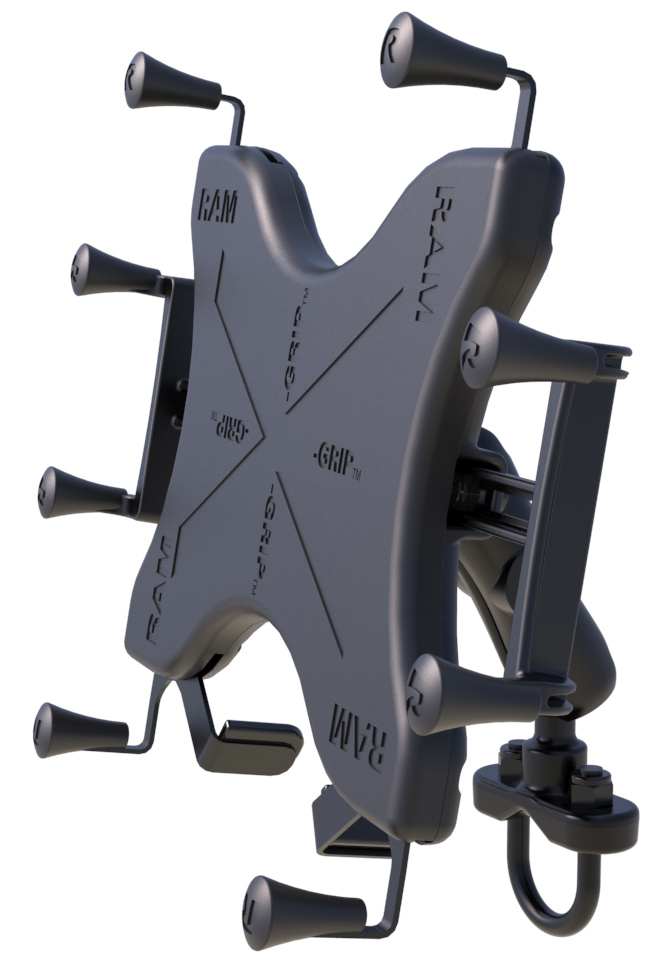

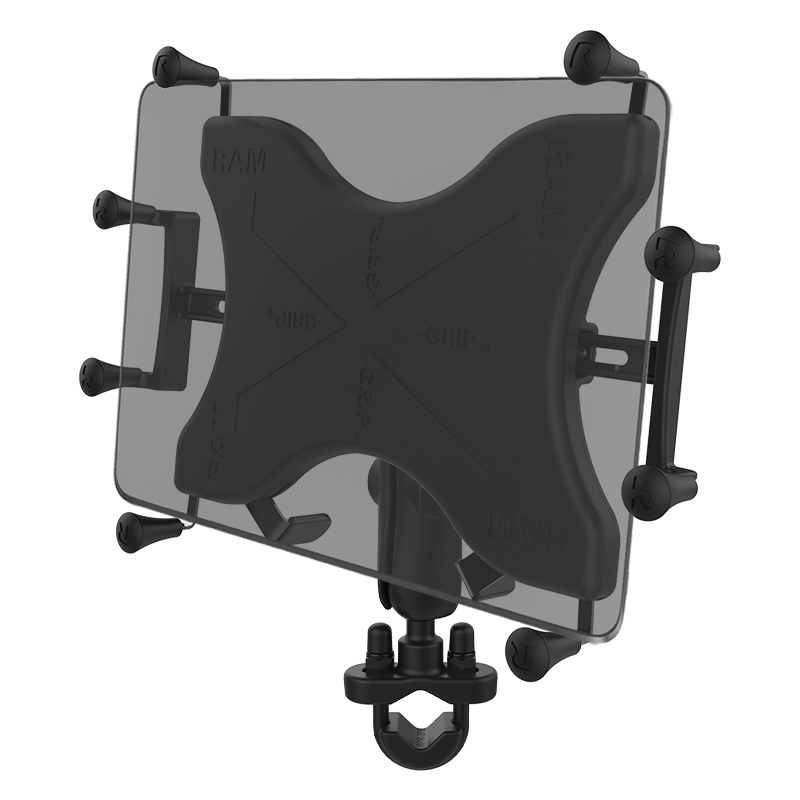

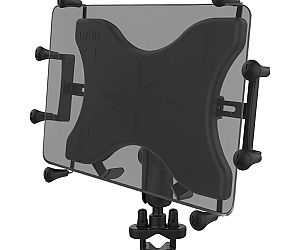

RAM X-Grip Large Tablet Mount a

Item number: RAM-B-149Z-UN11U

RAM X-Grip Large Tablet Mount with Handlebar U-Bolt Base.

FEATURES

  • Spring-loaded ‘X’ design with rubber caps sports great holding power without hiding your tablet; fits most 12″ (304.8 mm) tablets
  • Easy access grip knobs on the back of the holder allow for the quick release of your tablet
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
Out of stock
Price without VAT: 170,33 € Price: 207,80 €
Back to selection

Details

OVERVIEW

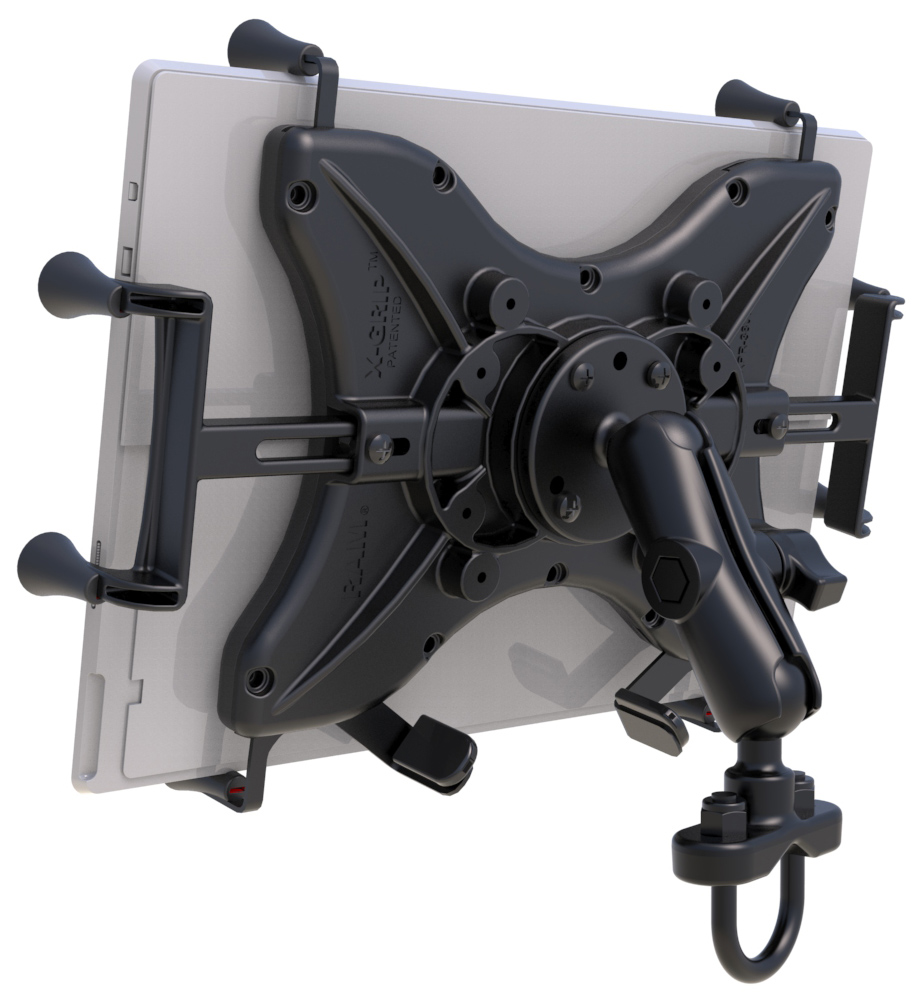

The RAM-B-149Z-UN11U consists of a zinc coated u-bolt base, double socket arm, round base adapter and universal X-Grip® clamping cradle for 12″ (304.8 mm) tablets. Included in this package is hardware that will accommodate rails from 0.50″ (12.7 mm) to 1.25″ (31.75 mm) in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5″ (12.7 mm). The mount is designed with a RAM 1″ (25.4 mm) diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The X-Grip® clamping cradle consists of a composite spring-loaded cradle, expandable grip arms, and an additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® clamping cradle expands and contracts for the perfect fit of most 12″ (304.8 mm) tablets with or without sleeves, as well as some smaller tablets. Please verify the dimensions of your tablet below for compatibility with the X-Grip®.

Specifications

HARDWARE INCLUDED
  • Assembly Hardware
  • (1) 1/4″-20 U-Bolt for .5″ – 1″ Rails (12.7 mm – 25.4 mm)
  • (1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails (25.4 mm – 31.75 mm)
  • (2) 1/4″-20 Nylock Nuts
  • (2) Rubber Caps
  • (1) U-Bolt Spacer
HOLDER DIMENSIONS
  • Max Height: 10.25″ (260.35 mm) (using optional supports)
  • Width Range: 7.25″ – 8.75″ (184.15  mm – 222.25 mm)
  • Max Depth: .875″ (22.22 mm)
CLAMP RANGE
  • .5″ – 1.25″ (12.7  mm – 31.75 mm) diameter
SOCKET-TO-SOCKET LENGTH
  • 3″ (76.2 mm)
BALL/SOCKET SIZE
  • B Size (1″) (25.4 mm)
WEIGHT CAPACITY
  • Standard Use: 2 lbs (907.18 g)
  • Heavy-Duty Use: 1 lbs (453.59 g)
MATERIALS
  • Marine-grade aluminum
  • High strength composite
PACKAGING TYPE
  • Poly Bag
WEIGHT
  • 1.79 lbs (811.93 g)
ADDITIONAL INFORMATION
  • This holder is compatible with the iPad Pro 12.9 without case only.

xgrip un11 animation of cradle dimensions

Compatibility

  • Apple
    iPad Pro 12.9 (1st Gen)
    iPad Pro 12.9 (2nd Gen)
    iPad Pro 12.9 (3rd Gen)
    iPad Pro 12.9 (4th Gen)
    iPad Pro 12.9 (5th Gen)



  • Dell
    Latitude 5285



  • Google
    Pixelbook



  • HP
    Elite X2 1012 G1
    Elite X2 1012 G2
    Pro X2 612
    Pro X2 612 G1



  • Lenovo
    IdeaTab Lynx K3011
    Miix 720
    Yoga A12
    Microsoft
    Surface 3
    Surface Book
    Surface Pro (2017)
    Surface Pro 3
    Surface Pro 4
    Surface Pro 5
    Surface Pro 6
    Surface Pro 7
    Surface Pro X



  • Samsung
    Galaxy Book 12″
    Galaxy Pro 12.2
    Galaxy TabPro S



  • Zebra
    R12 XSLATE
