RAM Finger-Grip Universal Mount

Item number: RAM-B-138-UN4

RAM Finger-Grip Universal Mount

FEATURES

  • Unviversal holder with flexible rubber-coated fingers to provide a secure grip of your device; fingers open by squeezing the ends

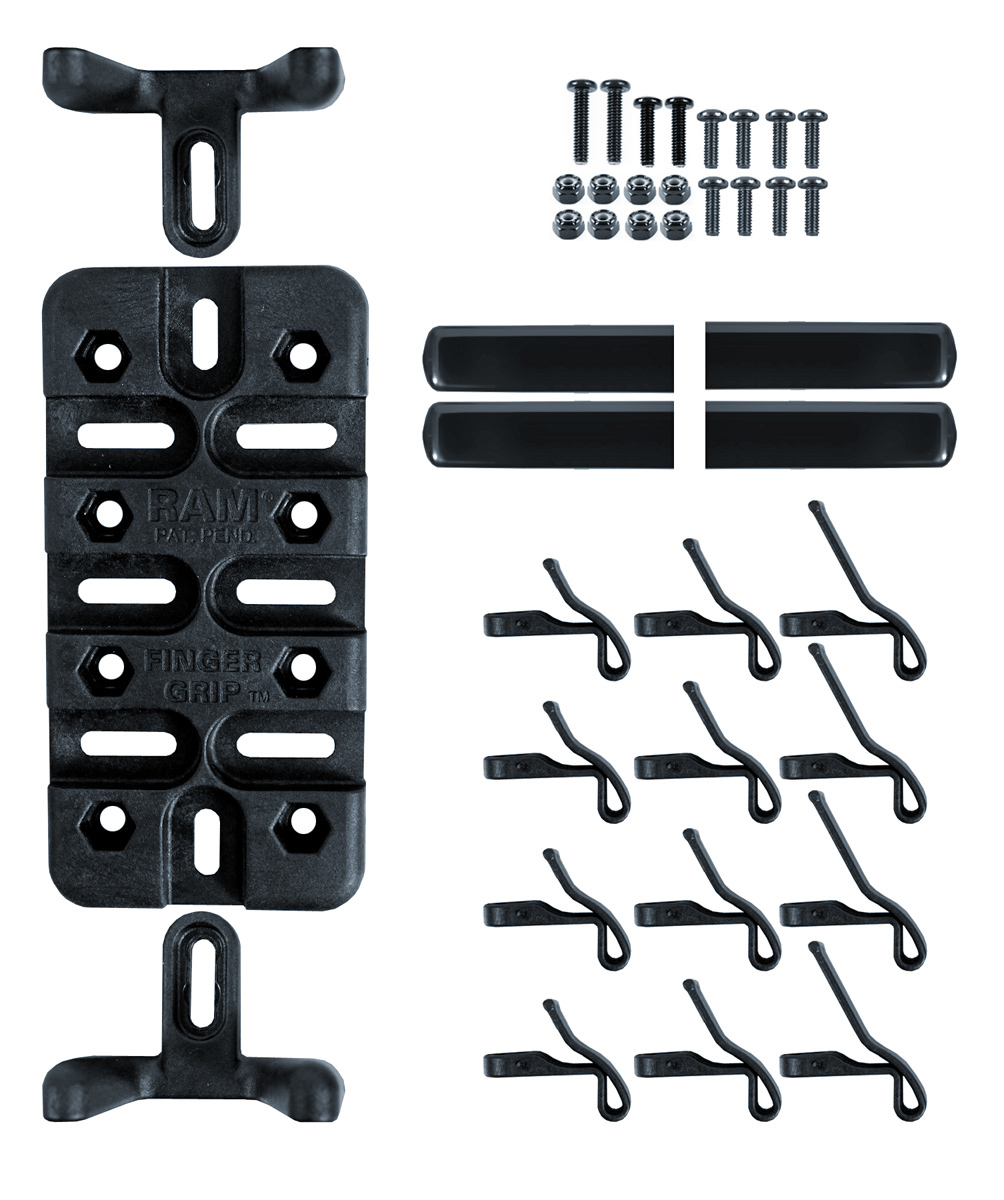

  • Includes three sets of four rubber-coated fingers for different size devices as well as top and bottom optional device supports
  • Backed by a lifetime warranty
Out of stock
Price without VAT: 91,26 € Price: 111,34 €
Back to selection

Details

OVERVIEW

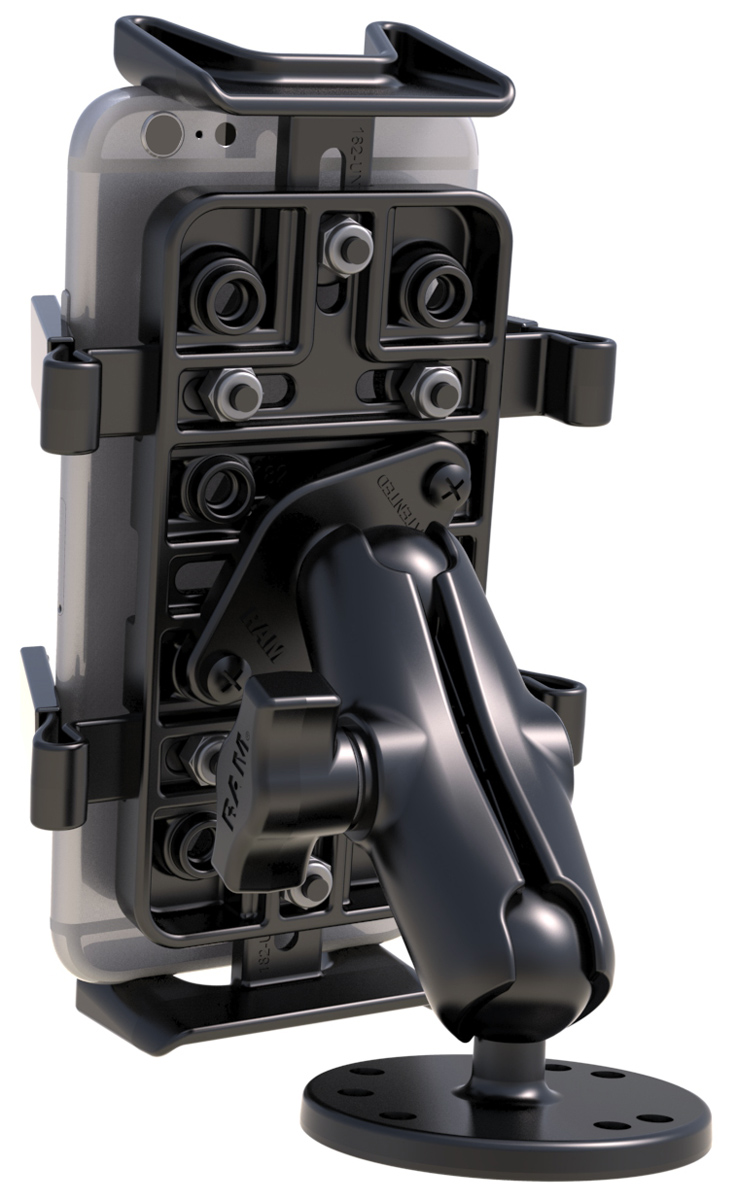

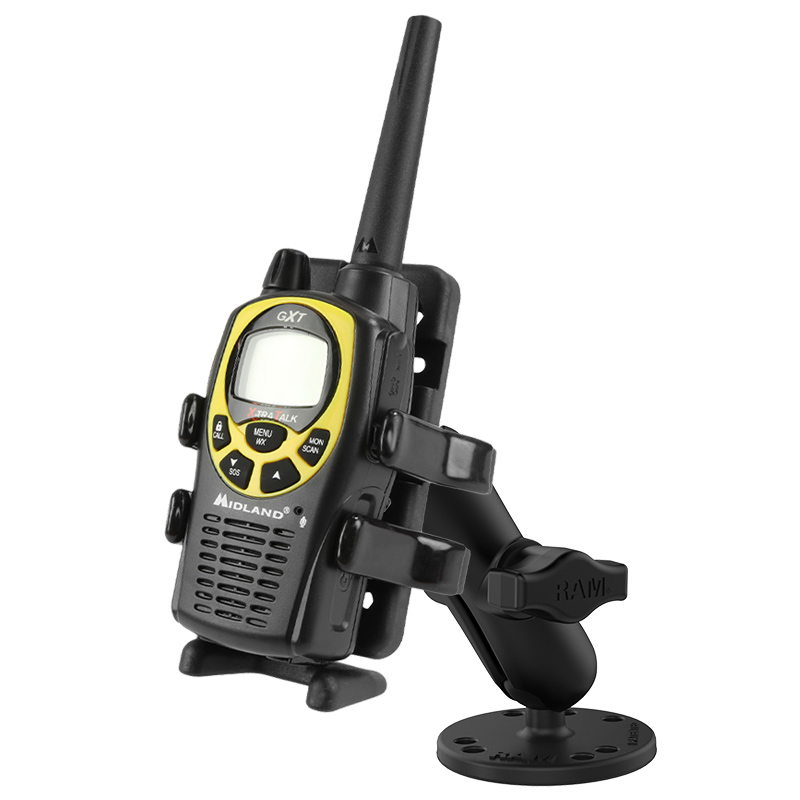

The RAM® Finger-Grip™ is a universal holder that can accommodate a wide range of devices including GPS, handheld radios, phones, bluetooth speakers, and much more. Included with the holder are three sets of four flexible rubber-coated fingers to grip your device. The main backing plate consists of multiple slotted holes where any set of finger grips can be positioned to hold your device firmly. When positioned correctly, your device can easily wedge in and out of the holder; suited for any rough environment. Also included are two sets of optional top and bottom supports to add even more stability to your device if needed. The back of the RAM® Finger-Grip™ contains multiple 4-hole AMPS hole patterns for connecting to any RAM® components using the included set of nuts and bolts. Mount your handheld device virtually anywhere with the RAM® Finger-Grip™.

Specifications

HARDWARE INCLUDED
  • Assembly Hardware
HOLDER DIMENSIONS
  • Height Range: 7.25″ (184.15 mm) max (using optional supports)
  • Width Range: 1.25″ – 3.5″ (31.75 mm – 88.9 mm)
  • Max Depth: 1.5″ (38.1 mm)
SOCKET-TO-SOCKET LENGTH
  • 3″ (76.2 mm)
HOLE PATTERN
  • 4-Hole AMPS: 1.181″ x 1.496″ (29.99 mm x 37.99 mm )
  • 3-Hole 120-Degree: 1.812″ Diameter (46.02 mm)
PLATE SIZE
  • 2.5″ Diameter (63.5 mm)
BALL/SOCKET SIZE
  • B Size (1″) (25.4 mm)
WEIGHT CAPACITY
  • Standard Use: 2 lbs (907.18 g)
  • Heavy-Duty Use: 1 lb (453.59 g)
MATERIALS
  • Marine-grade aluminum
  • High strength composite
PACKAGING TYPE
  • Retail Bag
WEIGHT
  • 1.07 lbs (485.34 g)



ADDITIONAL INFORMATION

un4 animation

Compatibility

  • 2-Way
    Radios



  • Amcrest
    ATR-22



  • BaoFeng
    BF-888S
    BF-F8+
    BF-F8HP
    DMR-6X2
    MURS-V1
    UV-5R
    UV-82C
    UV-82HP
    UV-82L
    UV-82X



  • Baofeng
    Black UV-5R V2
    GMRS-V1
    UV5RA
    UV-5X3
    Yellow BF-F9 V2



  • Garmin
    Alpha 100
    Astro 900 System
    Delta Sport XC
    Delta Upland XC
    Delta XC
    eTrex Touch 25
    eTrex Touch 35
    eTrex Touch 35t
    GPSMAP 66 Series
    inReach Explorer+
    inReach SE+
    Montana 700
    Montana 700i
    Montana 750
    Montana 750i
    PRO Control
    Sport PRO



  • Honeywell
    CT40



  • Midland
    75-822
    EX37VP
    HH50B
    LXT118
    LXT118VP
    LXT500VP3
    LXT535VP3
    LXT560VP3
    LXT600VP3
    LXT630VP3
    LXT633VP3
    X-Talker T10
    X-Talker T20
    X-Talker T31VP
    X-Talker T35VP
    X-Talker T51VP3
    X-Talker T55VP3
    X-Talker T61VP3
    X-Talker T65VP3
    X-Talker T71VP3
    X-Talker T75VP3
    X-Talker T77VP5



  • Spot
    X



  • TYT
    DM-UVF10
    MD-2017
    MD-280
    MD-380
    MD-380G
    MD-390
    MD-446
    Q1
    TC-2000A
    TC-3000A
    TC-3000B
    TC-5000
    TC-7000
    TC-8000
    TH-446
    TH-6200
    TH-F5
    TH-F7
    TH-UV6R
    TH-UV818
    TH-UV8R
    TH-UVF1
    TH-UVF8D
    TH-UVF9
    TH-UVF9D
    TK-918
    TK-928
    TK-938
    TYT-777
    TYT-800
    W700
    X1
    X2



  • Venterior
    VT-FF001/E
    VT-FF002
    VT-FF003
    VT-FF04



  • Wouxun
    KG-659E
    KG-699E
    KG-703E
    KG-819
    KG-828
    KG-829
    KG-928
    KG-939
    KG-958
    KG-959
    KG-968
    KG-988
    KG-D2000
    KG-D900
    KG-D901
    KG-UV66
    KG-UV8D
    KG-UV9D
    KG-UV9K
    KG-UVA1
    KG-V55
    KG-WT18



  • Yaesu
    FT-25R
    FT-270R
    FT2DR
    FT-4VR
    FT-4XR
    FT-60R
    FT-65R
    FT-70DR
    FT-70DR
    VX-6R



  • Zebra
    TC21
    TC26
    EC30
