RAM X-Grip Drill-Down Double Ball Mount
Item number: RAM-B-101-C-UN11U
OVERVIEW

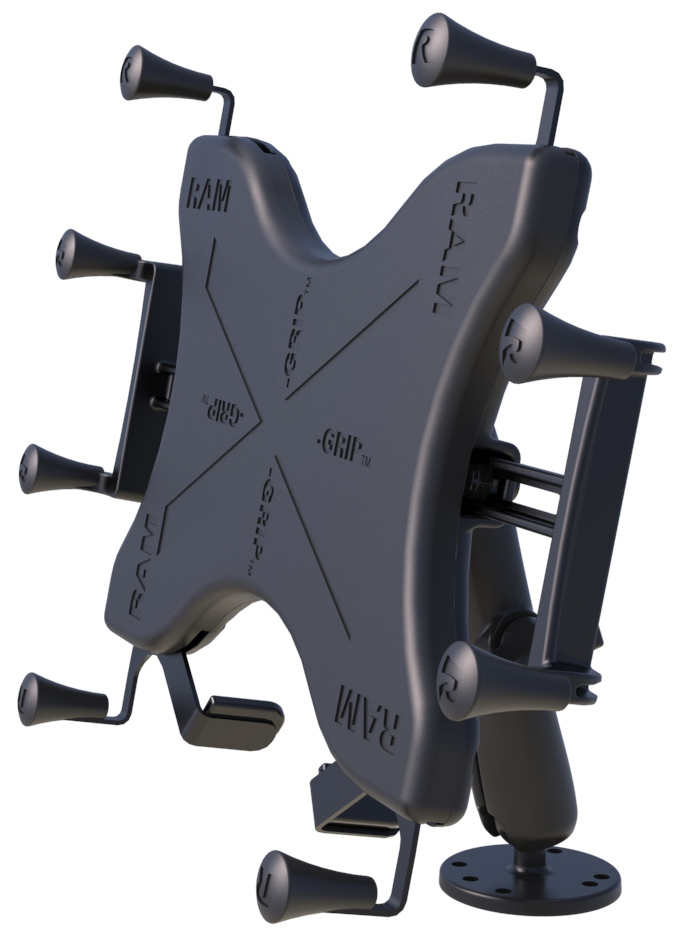

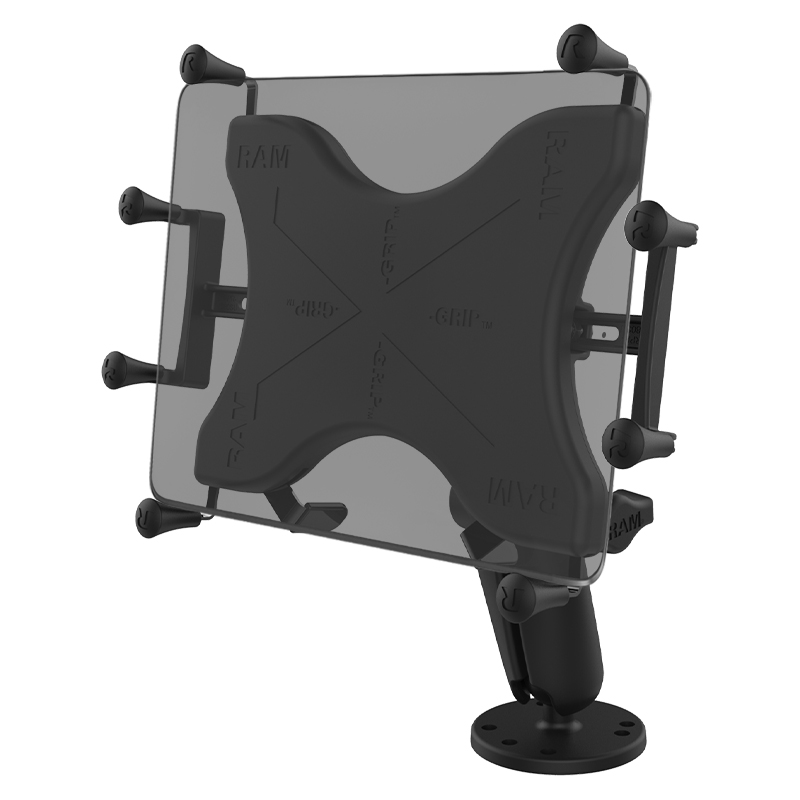

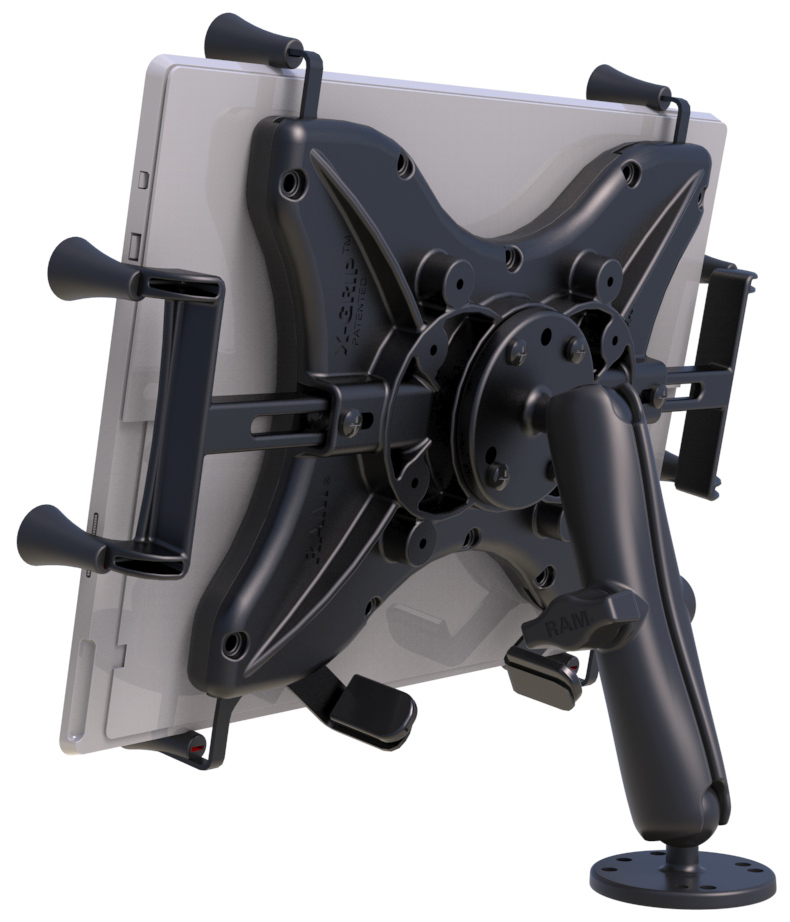

The RAM-B-101-C-UN11U consists of (2 QTY) 2.5″ (63.5 mm) diameter round bases with the universal AMPS hole pattern, LONG double socket arm, and universal X-Grip® clamping cradle for 12″ (304.8 mm) tablets. The X-Grip® clamping cradle consists of a composite spring loaded cradle, expandable grip arms, and additional bottom support, keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® clamping cradle expands and contracts for the perfect fit of most 12″ (304.8 mm) tablets with or without sleeves, as well as some smaller tablets. The X-Grip® cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
FEATURES
- Complete flat surface, drill-down mounting solution for the RAM® X-Grip® 12″ (304.8 mm) tablet holder
- Spring-loaded ‘X’ design with rubber caps sports great holding power without hiding your tablet; easy access grip knobs on the back of the holder allow for the quick release of your device
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
HARDWARE INCLUDED
- Assembly Hardware
HOLDER DIMENSIONS
- Max Height: 10.25″ (260.35 mm) (using optional supports)
- Width Range: 7.25″ – 8.75″ (184.15 mm – 222.25 mm)
- Max Depth: .875″ (22.22 mm)
SOCKET-TO-SOCKET LENGTH
- 5.31″ (134.87 mm)
HOLE PATTERN
- 4-Hole AMPS: 1.181″ x 1.496″ (29.99 mm – 37.99 mm)
- 3-Hole 120-Degree: 1.812″ (46.02) Diameter
BALL/SOCKET SIZE
- B Size (1″) (25.4 mm)
WEIGHT CAPACITY
- Standard Use: 2 lbs (907.18 g)
- Heavy-Duty Use: 1 lbs (453.59 g)
MATERIALS
- Marine-grade aluminum
- High strength composite
PACKAGING TYPE
- Poly Bag
WEIGHT
- 1.85 lbs (839.14 g)
ADDITIONAL INFORMATION
- This holder is compatible with the iPad Pro 12.9 without case only.
- Apple
iPad Pro 12.9 (1st Gen)
iPad Pro 12.9 (2nd Gen)
iPad Pro 12.9 (3rd Gen)
iPad Pro 12.9 (4th Gen)
iPad Pro 12.9 (5th Gen)
- Dell
Latitude 5285
- Google
Pixelbook
- HP
Elite X2 1012 G1
Elite X2 1012 G2
Pro X2 612
Pro X2 612 G1
- Lenovo
IdeaTab Lynx K3011
Miix 720
Yoga A12
- Microsoft
Surface 3
Surface Book
Surface Pro (2017)
Surface Pro 3
Surface Pro 4
Surface Pro 5
Surface Pro 6
Surface Pro 7
Surface Pro X
- Samsung
Galaxy Book 12″
Galaxy Pro 12.2
Galaxy TabPro S
- Zebra
R12 XSLATE
